Waste Heat Recovery in District Heating
As the world shifts towards more sustainable energy solutions, district heating systems are emerging as a key player in reducing carbon emissions and improving energy efficiency. Traditionally, these systems rely on conventional sources like combined heat and power (CHP) plants, biomass, and natural gas. However, a new trend is gaining momentum in the sector: the utilisation of sources that provide a surplus heat or waste heat. These often-overlooked or unusual sources of waste heat are proving to be valuable assets in creating low-carbon, efficient district heating networks.
These innovative approaches are being integrated into the latest generation of district heating networks, known as 5th generation district heating and cooling (5GDHC). But to fully appreciate the potential of 5GDHC, it’s important to understand how district heating has evolved through its different generations.
District heating has evolved significantly over the past century, moving from basic steam-based systems to highly efficient, low-temperature networks. The system’s progression is typically divided into generations, each marked by technological advancements and shifts in energy sources.
The Evolution of District Heating: A Brief Overview
Steam Networks to High-Temperature Water
The first generation of district heating, introduced in the late 19th century, used steam as the primary heat carrier but was inefficient due to high heat loss during transmission. Powered by coal, these systems contributed significantly to carbon emissions. In the mid-20th century, the second generation emerged, shifting from steam to high-temperature water (120-150°C), which reduced heat losses and improved efficiency. While coal was still used, oil and natural gas started to replace it, offering a slightly better environmental impact. However, fossil fuels continued to dominate, limiting long-term sustainability.
Medium-Temperature Water
In the late 20th century, district heating transitioned to medium-temperature water networks (70-100°C), defining the third generation. This period saw significant improvements in energy efficiency, partly due to the integration of combined heat and power (CHP) plants. CHP allowed the simultaneous generation of heat and electricity, making these systems more efficient and reducing reliance on fossil fuels. Third-generation networks also started to incorporate renewable energy sources and waste heat from industrial processes, representing a crucial step towards sustainability.
Low-Temperature and Renewable Integration
The fourth generation, which emerged in the early 21st century, lowered operating temperatures even further, with networks running on water heated to 50-70°C. These low-temperature systems are designed to integrate a wide range of renewable energy sources, including solar thermal, geothermal, and waste heat from industrial and commercial processes. Fourth-generation systems are more flexible and better equipped to meet the demands of a decarbonised energy landscape, offering greater efficiency and enabling the use of local, sustainable heat sources.
Ultra-Low Temperature and Ambient Heat Networks
The most recent innovation is the 5th generation of district heating and cooling (5GDHC) systems. These networks operate at ultra-low temperatures (20-50°C), utilising ambient heat sources that were previously inaccessible to higher-temperature systems. 5GDHC networks are characterised by their ability to exploit low-temperature heat from sources such as data centres, wastewater, and geothermal energy. This generation represents a leap forward in flexibility, efficiency, and sustainability, aligning with the goals of carbon neutrality and resilient urban energy systems.
The Trend of Low-Temperature District Heating Grids
One of the most significant shifts in district heating today is the move towards low-temperature heating grids. By operating at lower temperatures, these grids can reduce heat losses, increase efficiency, and integrate a wider range of heat sources, including those that would traditionally be considered too low-grade for effective use. This trend is not only about improving existing systems but also about rethinking how and where we source heat.
Tapping into Waste Heat Recovery for Energy Systems
The real innovation lies in the exploration of waste heat sources that can be integrated into these low-temperature grids. Some of the most promising and unusual sources include:
Data Centres
Data centres generate an immense amount of heat as a byproduct of their operations. Traditionally, this heat has been seen as a waste product, but with the right technology, it can be captured and fed into district heating systems. By recovering waste heat from data centres, cities can reduce their reliance on fossil fuels and lower overall emissions.
Wastewater Treatment Plants
Wastewater treatment plants are another untapped resource for district heating. The water treated at these plants retains a significant amount of thermal energy, which can be harnessed using heat exchangers and heat pumps. This energy can then be redirected into district heating networks, providing a sustainable heat source that was previously overlooked.
Industrial Processes
Many industrial processes, such as steel production, chemical manufacturing, and food processing, generate large quantities of waste heat. By capturing and utilising this heat, industries can contribute to local district heating networks, reducing the need for additional heat generation and lowering the overall carbon footprint of both the industry and the heating system.
Urban Infrastructure
Even the urban environment itself holds potential as a heat source. The London Underground, for example, generates significant heat, which could be captured and used to heat nearby buildings. Similarly, the waste heat from sewage systems and underground car parks can be tapped into, transforming the way we think about urban energy use.
The Benefits of Using Waste Heat Sources
Incorporating these heat sources into district heating systems are manifold:
- Increased Efficiency: By using waste heat that would otherwise be lost, we can make our heating systems more efficient and reduce the overall energy demand.
- Cost Savings: Utilising waste heat can lower the operational costs of district heating systems, which can translate into lower heating bills for consumers.
- Reduced Carbon Emissions: By replacing or supplementing traditional fossil fuel sources with waste heat, district heating networks can significantly reduce their carbon footprint.
- Enhanced Resilience: Diversifying the sources of heat within a district heating system can make the entire network more resilient to supply disruptions and fluctuations in fuel prices.
Colloides Role in District Heating
At Colloide, we are committed to advancing the use of a range of heat sources in district heating. Our engineering expertise and focus on sustainability allow us to design and implement systems that tap into these overlooked resources, providing efficient, low-carbon heating solutions for communities.
We understand that each project is unique, requiring a tailored approach to identify and integrate the most appropriate heat sources. Whether it’s capturing waste heat from an underground train network or harnesses low-grade heat from the River Tyne, we are at the forefront of turning unconventional ideas into practical, sustainable solutions.
Learn more on Colloides Energy Solutions >
Innovative heat network solutions
Advanced off-site construction
Highly accredited & reliable supply chain
Working across UK & Ireland
Energy Solutions Brochure
DownloadExamples of Waste Heat Recovery Schemes
Viking Energy Network Jarrow
Colloide was the principal contractor for the Viking Energy Network, a pioneering renewable energy project in Jarrow, South Tyneside. This UK-first initiative spearheaded by South Tyneside Counsel extracts heat from the River Tyne to supply 11 buildings, cutting carbon emissions by around 1,035 tonnes annually and saving approximately half a million pounds in fuel costs. The network integrates three renewable technologies: a river source heat pump, a 1-megawatt solar farm, and a combined heat and power (CHP) system. Colloide designed and constructed a cutting-edge energy centre at Jarrow Staithes, which extracts and heats water from the river, then distributes it via buried district heating pipes. This facility is set to operate near carbon-neutral during the summer.
Learn more

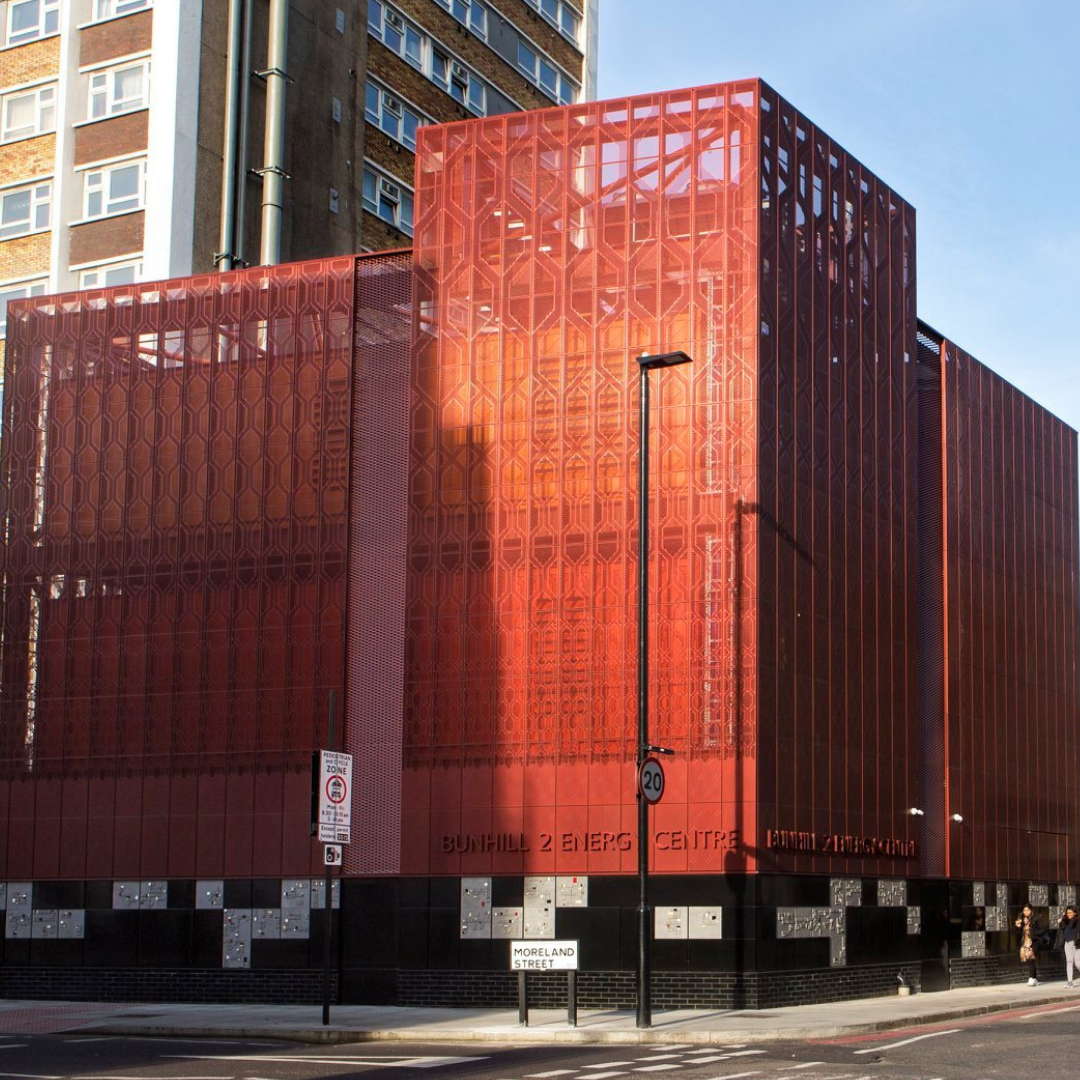

Bunhill Heat and Power district heating network
Colloide was appointed as the principal contractor for the groundbreaking Bunhill Energy Centre and phase 2 of the district-wide heat network. This pioneering project, the first of its kind in Europe, recovers heat from the London Underground. Funded by Islington Council, Bunhill Ward, and the EU CELSIUS research project, it initially benefits 454 homes with potential expansion to 1,000 additional homes. The project includes an extended heating network, a state-of-the-art energy centre, and the upgrade of 12 plant rooms. It involved installing over 1,600 meters of underground pipework and navigating complex routes through four live sites. The Energy Centre features innovative technology such as heat pumps, combined heat and power (CHP) units, and a centralised SCADA system, marking a significant advancement in sustainable energy solutions.
Learn more
